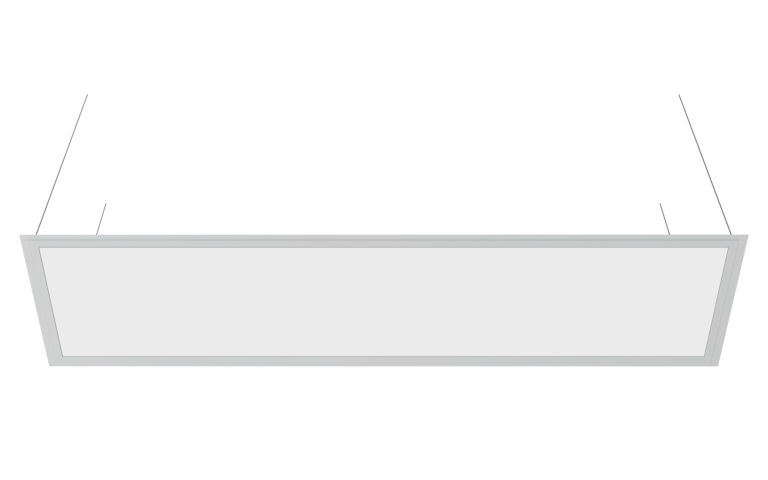

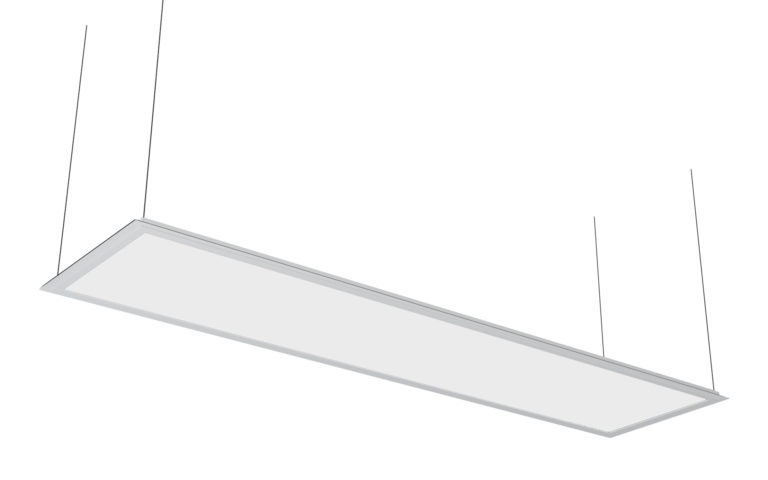

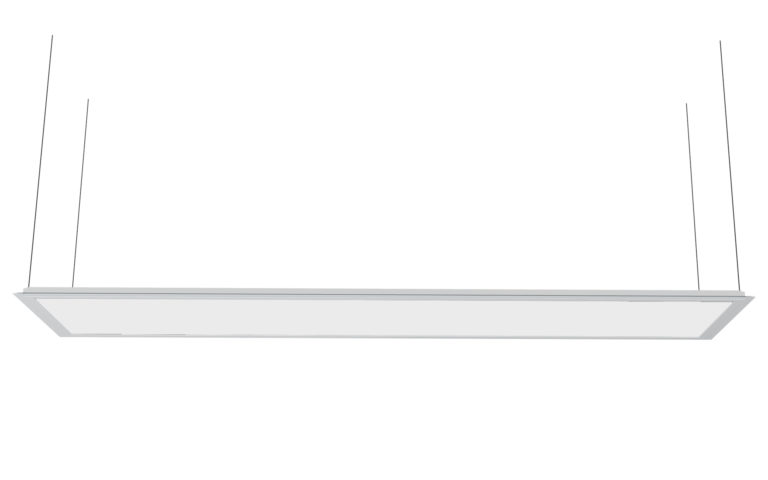

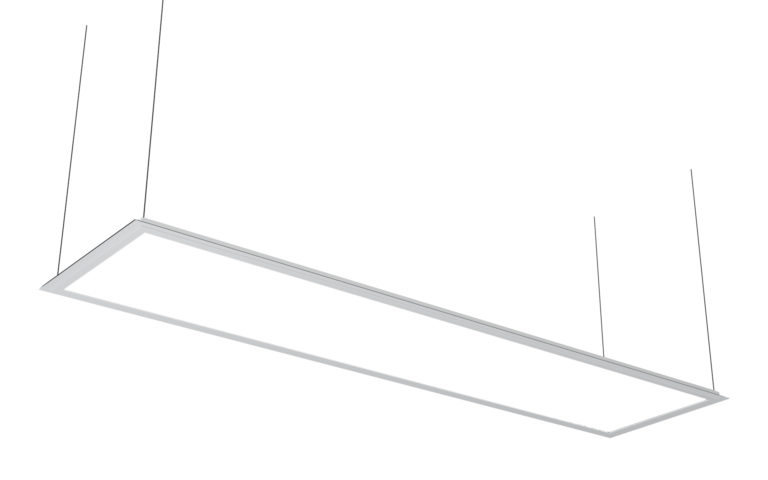

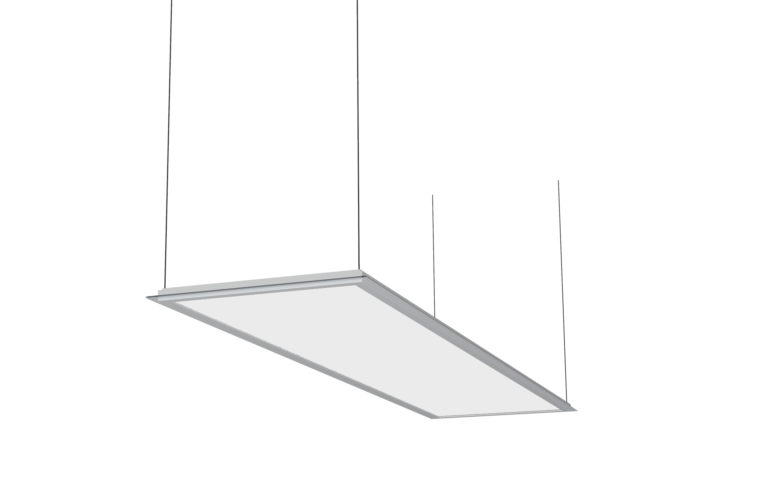

LED Panel Pendant

Our patented LGP technology enables us to produce LED Panels of TLT that can distribute the light which comes through the light spreading material, homogenously on the surface.

On the contrary of the conventional method (which is enlightening from the back), TLT Panels are based on the principal of enlightening from the edge.

The highlight of TLT LED Panels is they can be produced all the sizes in the range of 120cm*240 cm with our patented LGP technology.

TLT Panels consume less energy (about 60%) than conventional lighting fixtures. By the courtesy of our patented LGP technology TLT LED Panels are lightened indirectly so they are glare-free on the diffuser plates.  Thus TLT LED Panels are eye health friendly.

LED Panels are preferred by hospitals, offices, malls, schools, trade centers and all the areas which contains lighting because of their esthetics, energy saving and long lasting features.

Technical Data

Dimension295x1145x16 mm
Weight (kg)2,8 kg
Input Voltage (V-AC)220-240 V AC 50-60hz
Light SourceOSRAM LED
DriverPhilips
Power Consumption (watt)30 W
Color Temperature(Kelvin)3000K, 4000K, 6500K
Lifetime (hour)50.000 h (L₇₀)
Ambient Temperature (°C)-25°C- / +45°C
Luminous Flux (lm)2.750 lm
Efficiency (lm/W)92 lm/W
Color Rendering Index (CRI)≥ 80 (typ.85)
Warranty (Year)3 Yıl
